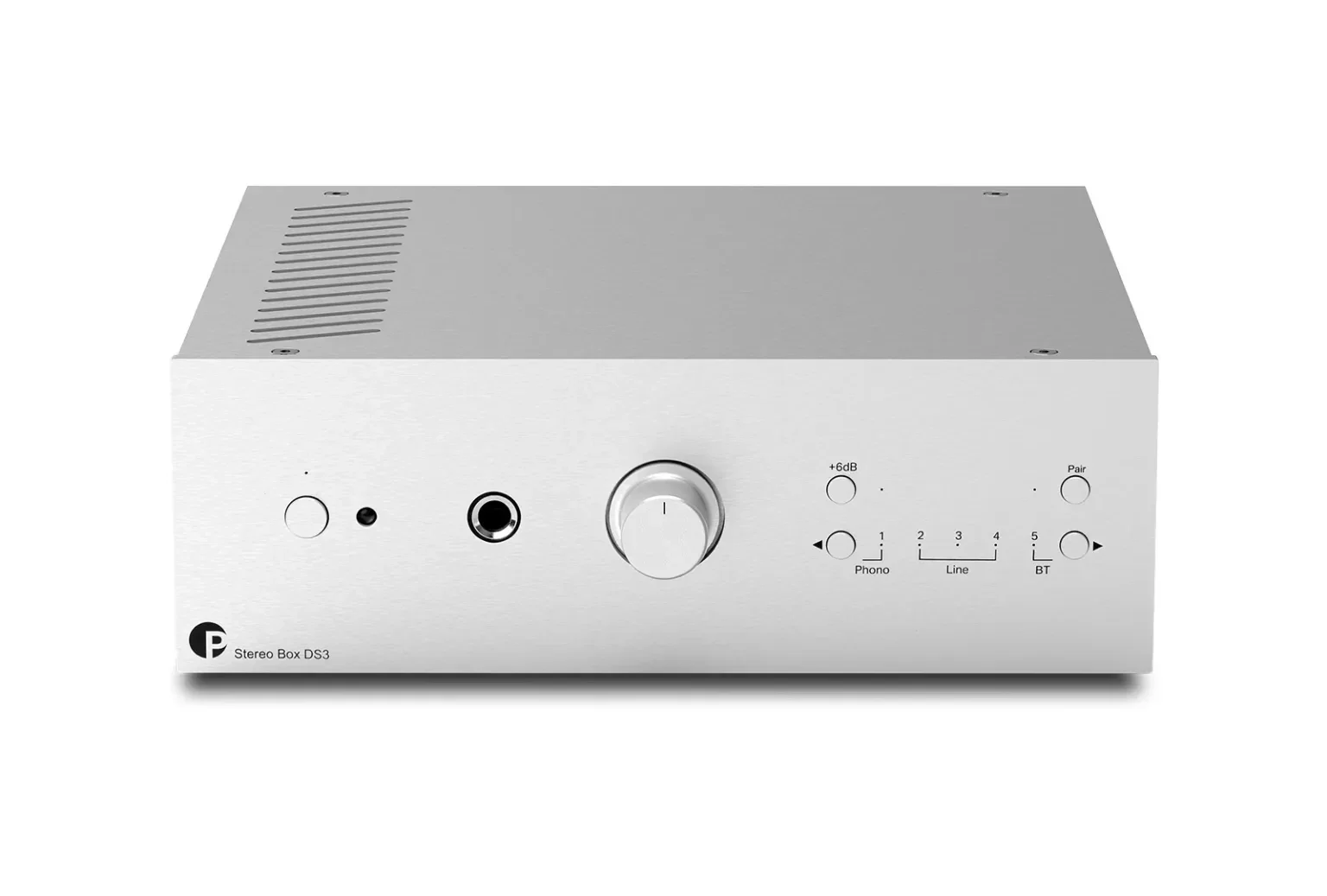

Pro-Ject Stereo Box DS3
Versatile integrated amplifier
The compact powerhouse
The Stereo Box DS3 is our new reworked classical integrated stereo amplifier solution. It offers you one phono (MM & MC capable), three line and one Bluetooth® input. With its 150 watts per channel at 4 ohms you can easily power your favourite speakers.
The whole electronics are packed into a beautiful machined full aluminium case which protects it against outer interferences. The Stereo Box DS3 is handmade in Europe and available in an either black or silver finish.
Versatile input & output options
The Stereo Box DS3 offers you the following inputs:
- 1x Phono (MM or MC)
- 3x Line (CD player, tuner, etc.)
- 1x Bluetooth 5.0 AptX HD
Use your favourite headphones to privately enjoy your favourite tracks or connect your speakers with 4 mm banana plugs, spades or naked wires to the gold-plated speaker outputs. The variable RCA outputs also allows you to include a subwoofer or another power amplifier in your setup. Use the fixed output to distribute the audio signal to another device unaffected by the volume control to feed an audio recorder, for example. With the supplied remote control, you are able to analogue change the volume with the motor driven potentiometer and switch your input.
Designed & handmade in Europe
The new Stereo Box DS3 is carefully designed and handmade in Europe. Our goal is to develop a technically flawless device in a housing that is only as big as necessary to safe raw materials. Due to the timeless design & rigid aluminium casework, it is built for eternity. With high-quality materials and components, but also well-thought-out design, we want to be a pioneer in the industry.
Features
- NEW 2 x 150 watts at 4 ohms output power
- NEW BLUETOOTH® V5.0 - aptX, aptX HD, A2DP profile
- NEW Pro-Ject remote control included
- Analogue volume control with motor driven potentiometer
- Dual mono design principle
- 3x RCA line inputs
- Powerful 2 x 450mW at 32ohm headphone output
- Fixed & variable output for subwoofer or second zone amp
- Trigger In and Output
- Gold plated RCA connectors
- Rigid aluminium casing protects against interference
- Magnetic wooden side panels available separately
- Available in black or silver
- Made in Europe
Technical Specifications
Power output:2x 150W / 80W at 4/8 ohms (1%THD)
Frequency response (20Hz-20kHz):-0,1dB to +0,3dB
SNR:>98dB (105 dB - ‚A‘ weighted) at 1kHz
Channel separation:-73dB at 10kHzTHD:< 0,01% at 10W
Phono input gain:MM 40dB / MC 60dB
Phono input impedance:MM 47k ohms / MC 100 ohms
Line level inputs:3 pair RCA (sensitivity: 860 mV)
Line input impedance:50 kohms
BLUETOOTH®:V5.0, aptX, aptX HD, A2DP profile
Variable/Fix line output:1 pair RCA / 1 pair RCA
Speakers output:4mm banana plugs, spades connectors or naked wire
Power supply:36V/5,5A DC 100 - 240V, 50/60Hz
Power consumption in standby:<0.5W
Battery remote control:2x AAA 1,5V
Dimensions W x H x D:206 x 71 x 211 (223)mm
Weight:1800g without power supply
