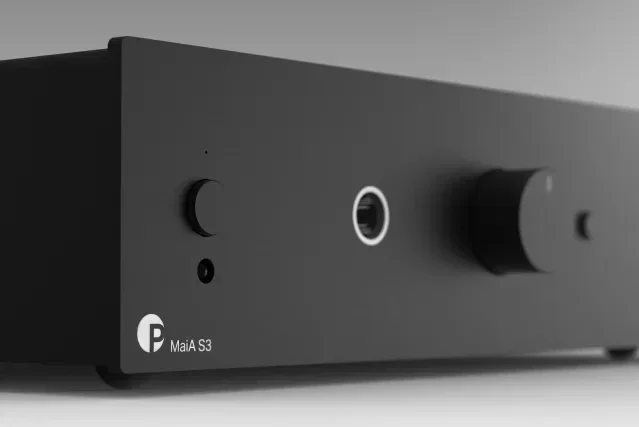

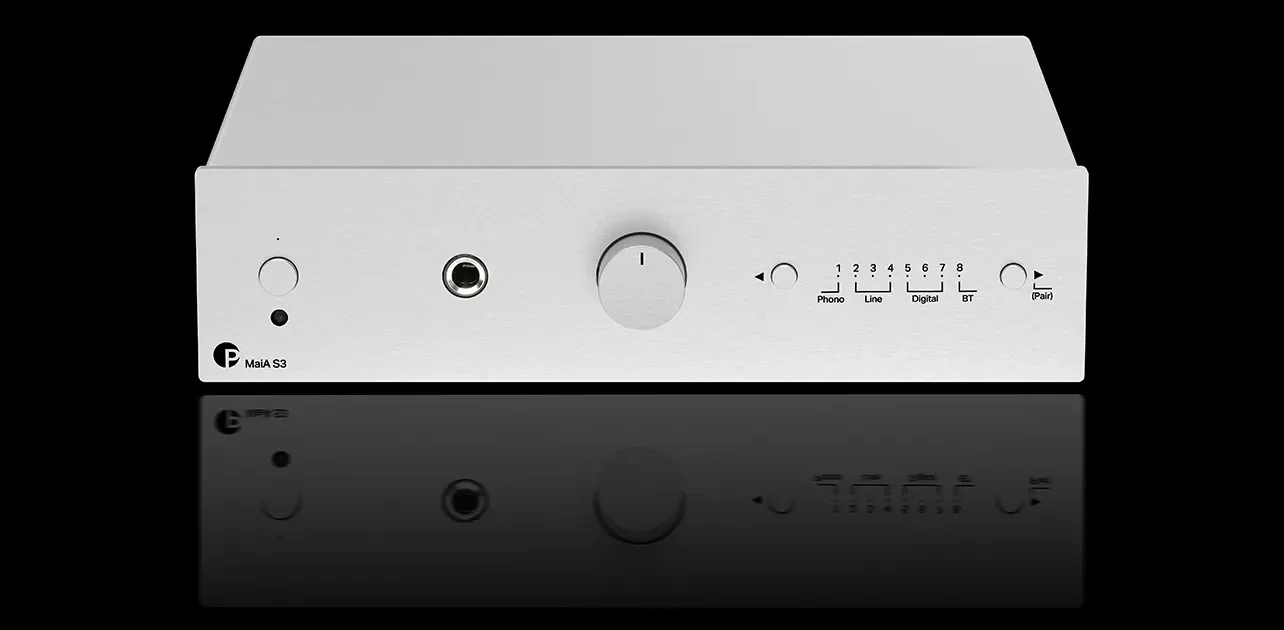

Pro-Ject MaiA S3
THE NEW MAIA S3
The MaiA S3 is the all in one solution for your hifi system. Not only the circuit design was reworked, also the case has been significantly changed and the MaiA S3 uses our new S3 case. Due to the bigger size we were able to improve the circuit board layout in terms of electromagnetical interference. With its 8 inputs you are ready for any kind of source device.
Versatile and Compact
The MaiA S3 offers eight inputs. Ready for digital or analog sources, wired or wireless – you’re covered. The phono section can handle MM, MI, or high output MC cartridges. Hook up your tuner or any other analog device to one of the three line-level RCA inputs. The DAC section allows a coax and two optical connections. The high definition aptX™ HD Bluetooth 5.0 wireless input allows streaming your favorite music via your phone.
Versatile In & Outputs
Use your favourite headphones or connect your speakers with the 4mm banana plugs and the low noise amplifier will do the rest. The variable RCA output also allows you to include a subwoofer in your setup.
aptX™ HD
Bluetooth 5.0aptX™ HD with our new Bluetooth 5.0 chip will allow you convenient high resolution streaming from your smartphone.
Made in Europe by technicians, engineers and designers with decades of experience. Expert craftsmanship. Sustainable products with a long lifetime. Audiophile audio performance.
Technical Specifications
Power output: 2x 23W / 40W at 8 / 4ohms (1% THD)
Frequency response (20Hz - 20kHz):<-0,5dB @4ohm
Channel separation:- 69dB at 10kHz
Signal to noise ratio:97dB (101dB-‚A‘ weighted) @4ohmTHD: < 0,04% at 10W / 4 ohms
Headphone amplifier: 2x 75mW at 32ohm (1%THD)
Headphone output: 6,3mm jack (16 – 600ohms)
Analogue inputs: 3x pair RCA, 1x phono MM (RCA)
Digital inputs: RCA coax, 2 x Toslink, Bluetooth 5.0 (aptX)
D/A-converter:Cirrus Logic CS4344 24bit/192kHz
Variable output: 1x pair RCA
Speaker connectors: 4mm Ø banana plugs, spades connectors or naked wire
Power supply:20V/3A DC;100 - 240V, 50/60Hz
Standby Power consumption: < 0,5 watts
Dimensions WxHxD: 206x55x153 (176mm with sockets)
Battery remote control: 1 x CR2032 / 3V or CR2025 / 3V
Weight: 1070 g without power supply
